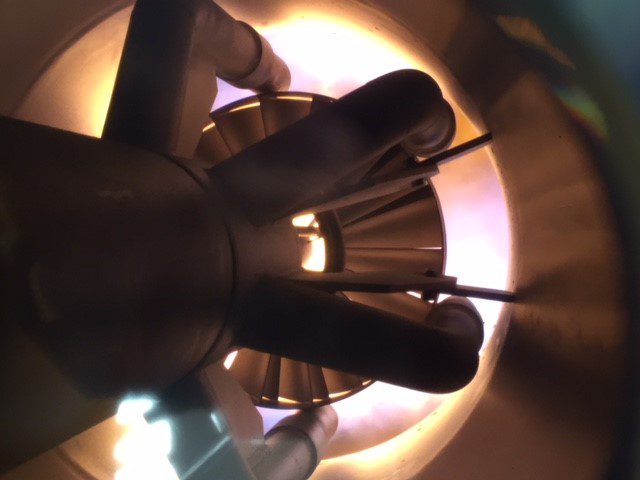

Ultra-Low NOx Gas Burners

Designed for superior environmental performance, RJM's ultra-low NOx gas burners utilise advanced flame shaping and internal flue gas recirculation principles to deliver exceptionally low emissions while maintaining optimum flame stability and thermal efficiency.

Outstanding performance

RJM has been developing its own ultra-low NOx gas burner technology since the company was founded in 1977. With applications to suit a range of different outputs and every firing configuration, RJM has a proven burner solution that can minimise or eliminate the need for secondary NOx reduction measures.

Key features

  • Designed for small to large-scale utility boilers
  • Ease of installation due to designed match with existing interfaces
  • Installed throughout the USA and the EU
  • Sub-100mg/Nm3 NOx capability with FGR
  • Stable flame across turndown
  • Operation at <1% excess O2
  • Greater flexibility
  • Improved operability
  • Common windbox with air sleeve or individual windboxes

Plant applications

  • EU power station. Front wall fired. NOx reduced from 216mg/Nm3 to <100mg/Nm3
  • Clauscentrale, Netherlands. Opposed-fired, Benson type burners. NOx reduced from 400mg/Nm3 to 200mg/Nm3

Click here for article in Modern Power Systems on RJM’s project at Essent Energie’s Clauscentrale plant
